High Energy Physics

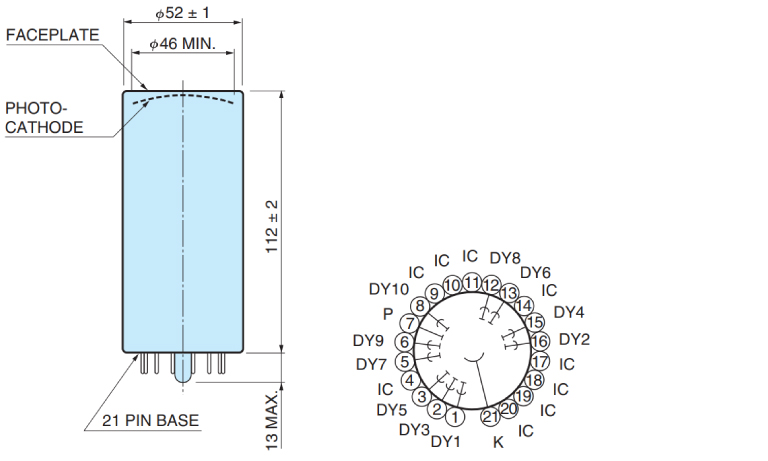

51mm dia., Head-on type, Bialkali photocathode (Effective area : 46 mm dia./Spectral response : 300 to 650 nm)
|Tube Size||Dia.51 mm|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.46 mm|
|Wavelength (Short)||300 nm|
|Wavelength (Long)||650 nm|
|Wavelength (Peak)||420 nm|
|Spectral Response Curve Code||400K|
|Window Material||Borosilicate glass|
|[Max. Rating] Anode to Cathode Voltage||2000 V|
|[Max. Rating] Average Anode Current||0.2 mA|
|Anode to Cathode Supply Voltage||1750 V|
|[Cathode] Luminous Sensitivity Min.||60 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||90 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||10.5|
|[Cathode] Radiant Sensitivity Typ.||85 mA/W|
|[Anode] Luminous Sensitivity Min.||30 A/lm|
|[Anode] Luminous Sensitivity Typ.||300 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.8 x 105 A/W|
|[Anode] Gain Typ.||3.3 x 106|
|[Anode] Dark Current (after 30min.) Typ.||6 nA|
|[Anode] Dark Current (after 30min.) Max.||40 nA|
|[Time Response] Rise Time Typ.||2.1 ns|
|[Time Response] Transit Time Typ.||29 ns|
|[Time Response] Transit Time Spread Typ.||1.2 ns|
|[Anode] Pulse Linearity (2% deviation)||60 mA|
|[Anode] Pulse Linearity (5% deviation)||90 mA|
