Microchannel plate photomultiplier tube

R10754-07-M16

27.6 mm square shape, 16 matrix multianode, MCP-PMT, Small dead space, Fast time response, For high magnetic field, Multialkali photocathode (Effective area :23 mm x 23 mm dia. / Spectral response : 160 nm to 850 nm)

Specifications

Type MCP-PMT
Features Fast response time

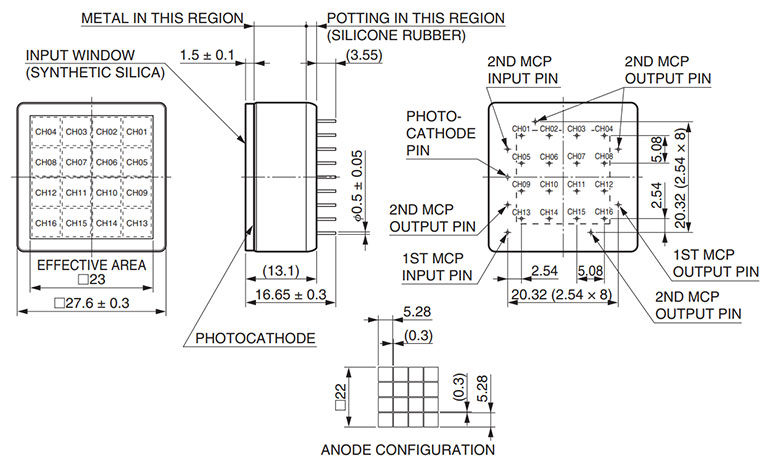

Tube Size 27.6 mm x 27.6 mm
Photocathode Area Shape Square
Photocathode Area Size 23 mm x 23 mm
Wavelength (Short) 160 nm
Wavelength (Long) 850 nm
Wavelength (Peak) 380 nm
Photocathode Material Multialkali
Window Material Quartz
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage 2700 V
[Max. Rating] Average Anode Current 2 mA
[Cathode] Luminous Sensitivity Min. 80 μA/lm
[Cathode] Luminous Sensitivity Typ. 110 μA/lm
[Cathode] Blue Sensitivity Index (CS 5-58) Typ. 7.5
[Anode] Luminous Sensitivity Min. 22 A/lm
[Anode] Luminous Sensitivity Typ. 110 A/lm
[Anode] Gain Typ. 1.0 x 106
[Anode] Dark Current (after 30min.) Typ. 5 nA
[Anode] Dark Current (after 30min.) Max. 30 nA
[Time Response] Rise Time Typ. 0.195 ns
[Time Response] Transit Time Typ. 0.31 ns
[Time Response] Transit Time Spread Typ. 0.075 ns
