High Energy Physics
Photomultiplier tube assembly

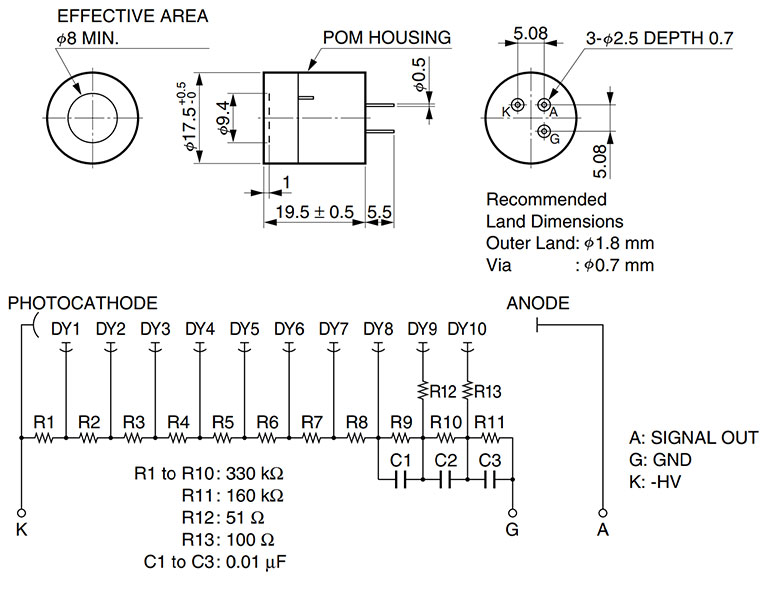

Photomultiplier tube assembly integrating a R9880U series photomultiplier tube and a voltage divider circuit. Compared to the combination of the currently available R9880U series and E10679-51 (D-type socket assembly), the overall length of the H13175U is shortened by approximately 8 mm. This helps downsize the equipment and also improves the degree of design freedom.
|Assembly Size||Dia.17.5 mm|
|PMT Tube Size||13 mm (1/2) mm|
|Built-in PMT Type No.||R9880U-110|
|Photocathode Area Shape||Round|
|Photocathode Area Size||Dia.8 mm|
|Wavelength (Short)||230 nm|
|Wavelength (Long)||700 nm|
|Wavelength (Peak)||400 nm|
|Photocathode Material||Super bialkali (SBA)|
|Window Material||Borosilicate glass|
|Dynode Structure||Metal channel|
|[Max. Rating] Anode to Cathode Voltage||1100 V|
|[Max. Rating] Average Anode Current||0.32 mA|
|Anode to Cathode Supply Voltage||1000 V|
|[Cathode] Luminous Sensitivity Min.||80 μA/lm|
|[Cathode] Luminous Sensitivity Typ.||105 μA/lm|
|[Cathode] Blue Sensitivity Index (CS 5-58) Typ.||13.5|
|[Cathode] Radiant Sensitivity Typ.||110 mA/W|
|[Anode] Luminous Sensitivity Min.||80 A/lm|
|[Anode] Luminous Sensitivity Typ.||210 A/lm|
|[Anode] Radiant Sensitivity Typ.||2.2 x 105 A/W|
|[Anode] Gain Typ.||2.0 x 106|
|[Anode] Dark Current (after 30min.) Typ.||1 nA|
|[Anode] Dark Current (after 30min.) Max.||10 nA|
|[Time Response] Rise Time Typ.||0.57 ns|
|[Time Response] Transit Time Typ.||2.7 ns|
|[Time Response] Transit Time Spread Typ.||0.2 ns|
